AMD VERSION AM4/AM5
*Includes bracket for LGA 1700, 1851 inside the box.

*There is also a dedicated Intel Version, that includes AMD AM4/AM5 bracket.
Reference MAM-T6HP-225PK-RB

The V8 is the flagship V-series single-tower air cooler, meticulously engineered for high-end overclocking and supreme thermal management. Built around groundbreaking 3DHP Technology and a precision-crafted LCP blade design, it delivers unrivaled cooling power to high-TDP processors. With its sleek, automotive-inspired aesthetics, the V8 provides maximum performance while maintaining a clean, minimalist look that complements any premium build.

Uninterrupted Processing Power
Advanced 3DHP technology rapidly dissipates heat from high-TDP processors, eliminating thermal throttling so your system maintains peak performance during heavy 3D rendering, video exports, or complex AI model training.

Whisper-Quiet Focus
Constructed with Liquid Crystal Polymer (LCP) to eliminate blade flex, the fan maximizes airflow while operating at a near-silent 38 dBA—ensuring your recording sessions, detailed audio work, or intense design workflows remain completely undisturbed.

EASY INSTALLATION
The tool-free sliding mechanism allows side fans to glide out without using metal brackets. This ensures effortless access and total freedom to install or upgrade premium memory kits.

Dedicated AMD Metal Bracket
An optimized, premium mounting system engineered specifically for AMD platforms to ensure a rock-solid foundation and specialized thermal contact for high-performance processors.

Engine-Inspired Aesthetics
A striking, non-LED visual design brings the raw, mechanical look of a high-performance engine straight to your motherboard, offering a clean and sophisticated appearance.

Model Name		V8 ACE 3DHP Black AMD	V8 ACE 3DHP White AMD
Model Number		MAM-T6HA-225PK-RB	MAM-T6HA-225PK-RW
EAN Code		4719512169483	4719512169506
UPC Code		884102141775	884102141799
China EAN		6928968325154	6928968325178
Exterior Color		Black	White

CPU Socket		AMD® AM5 / AM4 socket
Dimensions		138.95 X136.47 X 167.3mm( 5.47 x 5.37 x 6.58 inch)
Heat Sink Material		2 x 3DHP/ 4 x HP/ Aluminum Fins
Fan (Front)	Dimensions (L x H x W)	120 x 120 x 30 mm ( 4.7 x 4.7 x 1.18 inch)
	Profiles	N/A
	Quantity (pcs)	1 PCS
	Speed	0-2500±250RPM
	Air Flow (Max)	152.23 m³/h（89.6 CFM）
	Air Pressure (Max)	3.85 mmH2O
	MTTF	> 200,000 hours
	Noise Level (Max)	37 dB(A)
	Bearing	Loop Dynamic Bearing
	Connector	4-Pin PWM
	Rated Voltage	12 VDC
	Rated Current	0.2 A
	Safety Current	0.4 A
	Power Consumption	2.4 W
Fan (Rear)	Dimensions (L x H x W)	120 x 120 x 30 mm ( 4.7 x 4.7 x 1.18 inch)
	Profiles	N/A
	Quantity (pcs)	1 PCS
	Speed	0-2050±250RPM
	Air Flow (Max)	103.64 m³/h（61.0 CFM)
	Air Pressure (Max)	2.0 mmH2O
	MTTF	> 200,000 hours
	Noise Level (Max)	34 dB(A)
	Bearing	Loop Dynamic Bearing
	Connector	4-Pin PWM
	Rated Voltage	12 VDC
	Rated Current	0.13 A
	Safety Current	0.2 A
	Power Consumption	1.56 W
Warranty		6 years

Engine-Inspired AestheticsA striking, non-LED visual design brings the raw, mechanical look of a high-performance engine straight to your motherboard, offering a clean and sophisticated appearance.

Model Name

V8 ACE 3DHP Black AMD

V8 ACE 3DHP White AMD

Model Number

MAM-T6HA-225PK-RB

MAM-T6HA-225PK-RW

EAN Code

4719512169483

4719512169506

UPC Code

884102141775

884102141799

China EAN

6928968325154

6928968325178

Exterior Color

Black

White

CPU Socket

AMD® AM5 / AM4 socket

Dimensions

138.95 X136.47 X 167.3mm( 5.47 x 5.37 x 6.58 inch)

Heat Sink Material

2 x 3DHP/ 4 x HP/ Aluminum Fins

Fan (Front)

Dimensions (L x H x W)

120 x 120 x 30 mm ( 4.7 x 4.7 x 1.18 inch)

Profiles

N/A

Quantity (pcs)

1 PCS

Speed

0-2500±250RPM

Air Flow (Max)

152.23 m³/h（89.6 CFM）

Air Pressure (Max)

3.85 mmH2O

MTTF

> 200,000 hours

Noise Level (Max)

37 dB(A)

Bearing

Loop Dynamic Bearing

Connector

4-Pin PWM

Rated Voltage

12 VDC

Rated Current

0.2 A

Safety Current

0.4 A

Power Consumption

2.4 W

Fan (Rear)

Hyper 212 Black

Hyper 612 APEX

Hyper 212 3DHP Black ARGB

Hyper 212 3DHP Black

V4 Alpha 3DHP Black

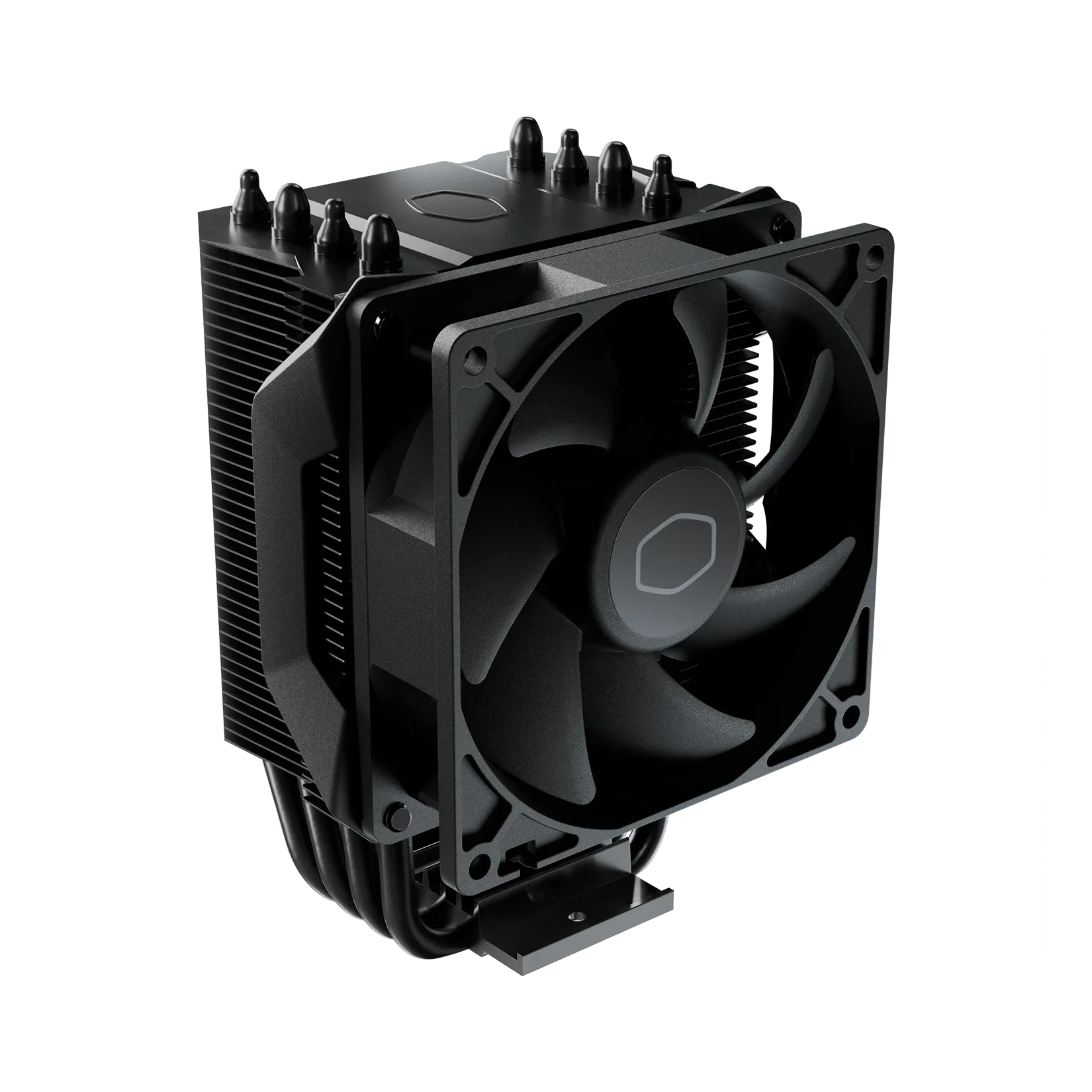

Hyper 411 Nano
